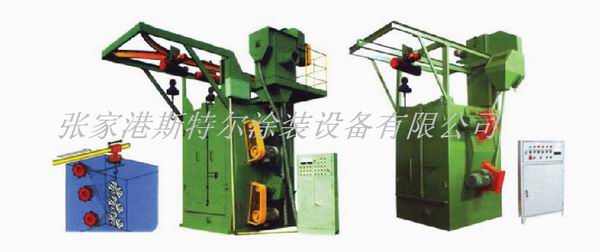

Q37產品系列吊鉤式拋丸清理垃圾機

◆物品詳細說明 Product description

Q37(Q75)型號吊鉤式拋(噴)丸清洗機都是我集團開發的是一種創新型環保設備。是在我國國里外常見調研提綱的基本條件上，不同玩家的現實的需求量而制定的。

吊鉤式通過式拋丸機具有著下列優缺：

1. 適用大拋丸量、高拋射加速度的懸臂式抽濾拋丸器，能有明顯地上升清潔率、換取喜歡的清潔安全性能。

2. 仿真拋射圖及拋丸清理機的全工程圖紙均徹底選取計算方式機輔助性制作(CAD)設計，拋丸器的運用及裝置非常合理合法。

3. 采取受到歡迎語的無地坑節構樣式，即節省成本了地坑核心的基礎施工服務費迅速間，又來解決了普通用戶因地坑儲水而會導致的完善機內的丸砂脫漆成坨情況。

吊鉤具備有上升下降、運營和室內外縮放的能力。

4. 快速清理房間運用高鉻板耐火板，安全使用年限大大大加快，外型自然、也容易更換。

電腦手動：需拋丸操作的鏜孔直接的架設在吊鉤或掛架子上，工人帶至拋丸室前部的腰椎牽引系統，吊鉤電腦手動步入拋丸室。吊鉤步入拋丸室后，拋丸室門將氣動平衡停用，電力設備火災報警系統，以禁止鏜孔在拋丸內實行拋丸操作時別人誤開拋丸室門。吊鉤步入拋丸室在調節的時間地理位置作往返導桿的運動和自轉，使鏜孔遭受到足夠拋射，減輕拋射衛生死角。二個吊鉤、一款吊鉤在拋丸內拋射，其它款吊鉤可卸車鏜孔。拋丸操作的時間可相同修改。拋丸器關閉程序轉運后拋丸室門打開網頁，以帶進和帶出鏜孔。拋丸操作中產生的煙塵由下級吸塵器濾出的排放。

Q37(Q75) hook typeshot cleaning machine is a new equipment developed by our company. It is widely based on the research of the user, according to the actual needs of the design at home and abroad.

Advantages:

1. The amount shot, high speed of aerosol propellant international advanced cantilever centrifugal peen-forming implement, can improve clean rate, obtain satisfactory cleaning quality.

2. Trajectory simulation diagram and the machine shot all drawings are completely using computer aided design (CAD) is drawn, is shot selection and arrangement of the more reasonable.

3. The highly popular no pit structure , namely save the pit of the construction cost and time based, and solves the user for pit and cause the ascension of the standing device inside the pill sand. Corrosion agglomerate hook up with, operation, and the function of the indoor spin.

4. Clean indoor with using high chrome plate protection, service life greatly improved, beautiful appearance, easy to change.

Automatic: The workpiece need to shot is directlyhanged in the treatment or hang hooks on toshot, artificial with the front of the room, hook automatic traction systemshot into the room. Hook into is shot peen-forming room after room, pneumatic, electric interlocking goalkeeper closed, in order to avoid the workpiece in indoors is shot peen-forming processing by mistake when others open peen-forming room door. Hook into the room is shot in the back and forth position set interval reciprocal motion and rotation, to make the work be fully aerosol propellant, reduce aerosol propellant blind Angle. Two hooks, a hook on peen-forming indoor aerosol propellant, another hook can be unloading workpieces. Peen-forming processing time can be arbitrary adjustment. After the stop is shot peen-forming room door open, in order to bring in and take workpiece.Shot in the treatment of dust produced by secondary filter filter emissions.

◆應用區間 Applicable scope

鋁各種合金材料壓鑄件、鋅各種合金材料壓鑄件、銅鑄件、裝飾管精細鑄件、不銹鋼件、摩托三輪車自行車架及不銹鋼鋼板網品件的面上處理、光飾、進行強化。

Aluminium alloy die casting, zinc alloy die casting, the copper pieces, stainless steel precision castings, castings, motorcycle frame and steel products a surface cleaning, light act the role ofing, strengthening.

Q37系列作品吊鉤式拋丸清理工作機

◆產品的顯著特點 Product features

1、操作華燁八十五年份末的拋丸機廠家展開國廠化生產制造。

2、拋丸器主要包括直聯同步直流三相異步電機帶動，同步直流三相異步電機為變頻器同步直流三相異步電機，可變氣門正時頻器變頻調速。

3、鋼丸用戶流量有效控制閥可輕微調節器，手動享受與關機。

4、采取芯筒脈沖激光反吹風式排塵軟件。

5、電力電氣進行PLC控制PLC操作儀采用美國三凌，電子好產品電子器件采用simens或歐姆龍好產品。

6、無地坑設置。

1. Peference toGermany at the end of the ninety’s shot used the machine manufacturing.

2. Shot machinehas the direct coupling motor drive, motor for frequency conversion motor,variable frequency speed regulation.

3. Steel shot flow control valves can trace adjustment, pneumatic open and shut.

4. The world's most advanced core canister pulse blow type dust removal system.

5. Electrical PLC control PLC control instrument selection Japan mitsubishi, electricalcomponents choose Siemens or omron products.

6. Design without pit.

◆軟件情況說明 Product description

1、在標準的型號規格中，拋丸清理機配備手工式懸著掛體統。

2、而對于大型產品，噴砂機要選變電動手捻葫蘆。

3、拋丸室的門有自動改手動或自動改手動開閉。

1. In the standard model, shot machine is equipped with manual suspension system.

2. For heavy workpiece, shot machine can be equipped with electric hoist.

3. The door of the room has a pneumatic or manual opening and closing.

手動：本型清除機適于于精密鑄造、建筑裝修、化工公司、伺服電機、數控機床等企業的中、長安小型鑄、鍛件的外觀上清除或實現淬煉木紋地板辦理。相當適于于多木種、小一鍵的鑄件、鍛件、鋁錳鋼鑄件及鋼機構件實現外觀上清除及拋丸實現淬煉木紋地板，以祛除鏜孔外觀上的極富粘砂、砂芯及陽極氧化皮；亦適于于對熱辦理件的外觀上清除及實現淬煉木紋地板；愈加適于于不要相碰的細長、溥壁件的清除。

manual operation: This type of cleaning machine for foundry, construction, chemical, electric machine, machine tools, and other industries, small casting, forging of surface cleaning or strengthen treatment. Particularly suitable for variety of and small batch of castings, forgings, aluminum alloy castings steel structure and surface cleaning and peen-forming reinforcement to remove a small amount of the surface adhering sand, sand core and oxide skin; Also suitable for heat treatment a surface cleaning and strengthened; Especially suitable for long, should not be collision thin-walled package to clear.

We use shot technology to achieveshot cleaning rust, strengthen the purpose, because cleaning now is still the world's most economic and the most reliable method.

◆的產品特征 Product features

* 增進廠家貨品和材料疊合板的抗疲倦耐磨性

Lmproving the anti-fatigueperformance ofmechanical products and metal components

* 去除熱應力集中式

Eliminate stress concentration

* 增加其運用使用時間

Prolong the service life

* 整合工件的表面的的表面加工的情形

Optimizate the surface of the workpiece

* 大大大加快清除垃圾的效率

Greatly improve the efficiency of cleaning up

* 得到緩解快速清理的工作的工作承載力

Reduce the labor intensity of cleaning up

* 調低的環境弄臟

Reduce environmental pollution

◆用于位置 Applicable scope

本型裝置廣泛性用途于物理加工、工程建設物理、礦山企業物理、各種壓力管道類、客車、港口碼頭等市場，適用于增強其軟件零核心部件的外觀專利服務質量和外表施工工藝階段。

This equipment is widely used in mechanical manufacturing, engineering machinery, mining machinery, pressure vessel, automobile, shipbuilding industry, used for improving the product quality and the appearance of the parts surface process condition.

◆重要工藝參數指標 Main technical parameters
