管道外壁自動噴砂機
◆適用人群比率 Applicable scope
管類鏜孔,如:無縫鋼管、槽鋼、支撐桿、螺栓、玄幻圓形體、圓罐類、圓形體型零部件;選用雙槍(可按必須多槍)及風暴式除灰器和光電子感應開關基本功能,延長了種植使用率及小臭的減低了維護率。 (此手機型號需預訂)
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆最主要的枝術指標 Main technical parameters
工具技術參數 Model |

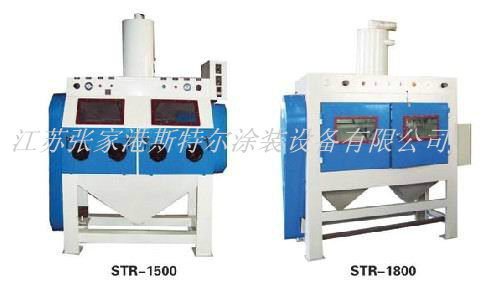

STR-1500管道外壁自動噴砂機 |
STR-1800輥傳動雙槍自動噴砂機 |
業務艙尺寸大小 Working class size(mm) |
1000×900×900 |
1800×900×1000 |
組裝機圖片尺寸 Complete machine size(mm) |
1200×900×2900 |
1900×900×2900 |
收縮環境源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
電原 Power |
220v 50Hz |
220v 50Hz |
直流變頻高壓電機控速器 Governor |
250W×2 |
250W×2 |
離心分離機主軸電機 Separator motor |
380v 50Hz 4kw |
220v 50Hz 1.1kw |
提取器新風量 Air separator |
35m3/min |
35m3/min |
絲機毛重 Machine weight |
900kg |
900kg |
