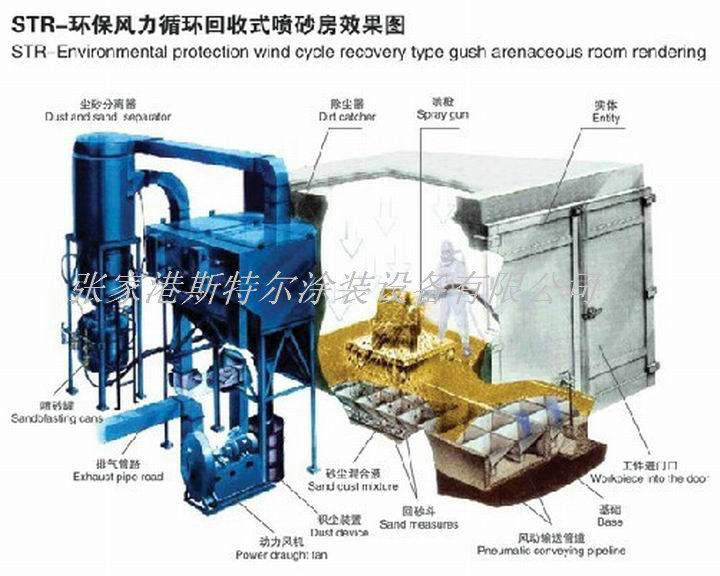

STR-環保風力循環回收式噴砂房效果圖

STR-Environmental protection wind cycle recovery sandblast room designsketch

◆噴砂（丸）房的組合程序

Composition of the sandblasting (shot) room system

1、的游戲工作室  Studio

2、噴砂整體  Sandblasting  system

3、爐料收集系統化  Abrasive recycle system

4、除塵處理軟件系統  Dust removal system

5、鋼件輸送機軟件系統  Workpiece conveying system

6、操作操作系統  Control system

7、照明設計系統化  Lighting system

 ◆采用超范圍 Applicable scope

大一些的鑄件鍛件、對焊鋼構造、變電器機油箱、項目 機制、電動車設備、燃氣鍋爐研發、紙業機制、飛機修造等噴砂去銹。

Large castings and forgings welding steel structure, transformer oil tank, engineering machinery, locomotives, boiler manufacturing, chemical machinery, ship building blast cleaned, etc.

 ◆新產品優勢 Product features

噴砂房是我公司在蜂窩地板技術的基礎上，自行開發、設計的環保型蜂窩式噴砂（丸）房，可按客戶的產品特性、噴砂要求等設計制作。蜂窩地板噴砂房是利用風機的風力為動力，將磨料通過回料管道吸送到旋風分離器中進行分離，最后進入噴砂系統循環利用。

Sandblasting room  is our company in introducing foreign advanced cell technology based on the floor, , the development, the design of the environmental protection cellular gush arenaceous (shot) room by ourselves, according to customers' product characteristics, sandblasting design requirements, etc. Cellular floor gush arenaceous room is the wind power by fan for abrasive materials, will back through the pipe to cyclone separator suction of separation and finally into gush arenaceous system recycling.

具備之下優缺點：

1、省去了常規噴砂房砂料輸送煤循環系統的螺旋輸送機，斗式提升機以及地下工程，不需建造地坑，節約了地基施工費用，大大節約了工程成本；

2、耐磨材料收售率高，更加方便清換耐磨材料；

3、首要組合件開關元件均進行進口的車輛，體現了的性能維持，平安穩定，的使用期限長，維護保養方便；

4、噴砂房室體內有高清晰的能見度，室體自然補風，節約能源消耗；

5、該機適用冷凝機組濾塵，第一個級適用風暴溶合器，其二級用油濾式濾塵系統性，其總濾塵吸收率會達99.99%這些；

6、在噴砂房正面房頂上部，配有“聲光報警系統”，在噴砂房內，配有急停呼叫按鈕；

7、各程序電子的控制系統性化用到互鎖的控制，當在當中一程序存在設備故障時，相應的程序均結束工做，噴槍結束噴射出；

8、房體主要采用搭建飾品規劃，外光簡練、形象、規范標準，降躁結果好，且裝設便捷性。

Advantages

1. Omitted conventional Sandblasting room sand conveying coal circulation system, screw conveyor a pattern lift machine and underground project, no need to build the pit and save foundation pit construction cost, greatly reduce the project cost;

2. high  abrasive recycle efficiency, easy to change abrasive;

3. The main electrical components are imported products, have the stable performance, safety and reliability, long life, easy maintenance;

4. Sandblasting room inside has high-resolution visibility, Chambers fill the wind, save energy natural consumption;

5. This machine use double levels of dust removing, the first level is the cyclone separator, the second type is filter dust removal system. Its total removal efficiency may reach above 99.99%;

6. In sandblasting room roof, equipped with a "positive upper sound-light alarm system", in the room, sandblasting with abrupt stop call button;

7. The electric control system uses interlock control, while one system malfunction, related system are to stop working, stop spraying gun;

8. Building decoration design room body appearance, simple , beautiful, standard, good noise reduction result  and convenient installation.
