◆的產品特殊性 Product features
1. 構思創意,性能外觀,優質體驗好;
2. 可調節為式漩風隔離處理器,能將可以用耐磨材料與小粉塵濃度隔離處理,好的耐磨材料再采用;
3. 重點零核心部件進行高質量進出口工件,使用的使用使用期長;
4. 激光加工鏜孔外層均勻分布;
5. 多流水線工開發;的運作工可時的運作噴砂。按照其老客戶市場需求,可供選擇擇一鍵或自然 ;可按潛在客戶條件生產廠家!
1. Novel design , beautiful shape, good environmental protection effect;
2. Adjustable cyclone separator, can be used with tiny dust separation, good abrasive continue to use;
3. The main components uses the high quality import parts, long service life;
4. Machining surface evenly;
5. Program design; An operator can also operate sandblasting. we can choose manual or automatic according to customer needs.
◆適合區間 Applicable scope
護墻板,電子設備殼子,音響低音炮面板開關,面包烤盤等空間圖形及方體零件的噴砂加工生產。
Plate, the computer case, music panels, sandwich baking dish wait for plane and workpiece of sandblasting processing.
◆主要技術設備運作 Main technical parameters
刷卡機尺寸 Model |

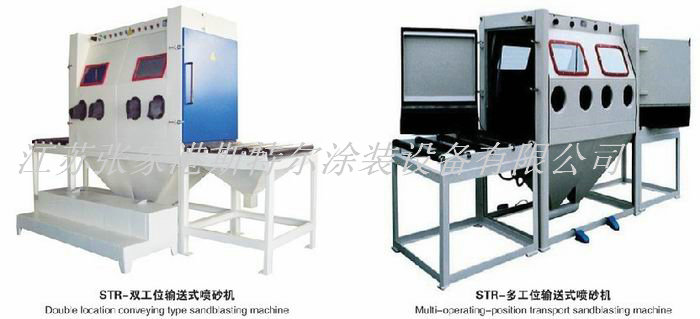

STR-多工位輸送式噴砂機 |
空機規格 Complete machine size(mm) |
3000×1000×1700 |
運作環境空間 Work space(mm) |
2000×1000×800 |
外輸送帶盡寸 Conveying the size(mm) |
500×1000×1000(2件) |
清灰箱長寬 Dedust box sizes(mm) |
600×600×1800 |
離心分離設備無刷電機 Separator motor |
220V 50HZ 550W |
離心分離機新風量 Separator air volume |
8.5m3/min |
降低氣體源 Compressed air source |
2-8bar(kg/cm2) |
噴槍 Spray gun |
2把 |
照明 Floodlight |
兩盞30W防震燈 |
服務器克重 Machine weight |
550kg |
