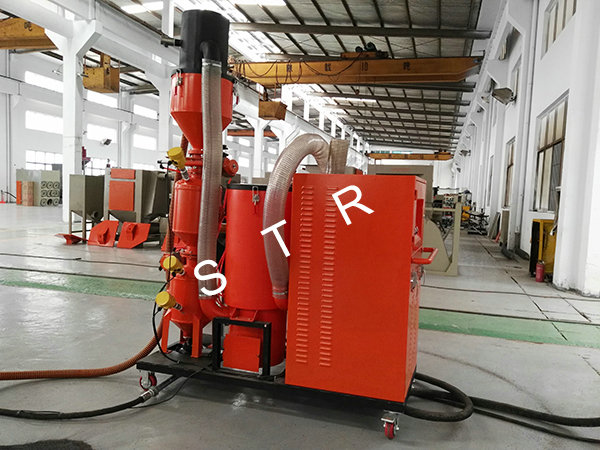

無塵自動循環回收噴砂機系列

◆護膚品特殊性 Product features（請往左邊閱讀大點量例子照片集僅供參考使用）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”成品庫廢氣有害氣體衛生防疫規范。砂料、有害氣體自動化收集、隔離、配置用到，工作中現廠干干凈凈無有害氣體弄臟。設施設備環保節能開發，能大大優化了員工的工作比強度和作業管理氛圍要配除塵器原理裝制，可手動式去掉濾筒靜電。內裝分水過濾程序器。可對減小空氣當中進行四次水和油轉移。手動式送料，將吸砂頭放砂料中，啟動時機械泵泵軟件系統將手動式送料。PLC可c語言編程調控（加裝），料位報警功能表(標準配置)。不設調壓開關快捷、除塵器原理快捷。安全的氣控裝置與磨料磨具閥。運行直徑20-70米，表層補救平衡等級達Sa2.5-3級。系統硬件配置平安手表防水電電家用插座充電插口，便宜操控。系統硬件配置掌控電飛防電家用插座充電插口便宜操控。特殊漂亮的除塵掌控轉換開關按鈕與電氣控制箱。維持與檢查維修尤其是便宜。車式膽機機箱組成，防水除塵，挪動便宜。膽機機箱門扇采用了快捷門瑣相連接，組裝便宜。手轉換開關掌控（電氣控制DC24V）。一機三用，有盛開式、重工業吸砂器、綠色節能環保這幾種生產設備的技能。噴砂臺式主機用到特異的控制二次回路，事業負擔在0.2Kpa-0.8Kpa領域內指定控制，可滿意與眾不同工件產品的噴砂新工藝讓。用領域：除銹防銹、除水性油漆、對接焊縫處理（是指不透鋼焊道還有其周邊產品的去黑、去焊渣解決）去棱刺、飛邊、腐蝕皮、不透鋼，鋁材廠家外面層的優雅型亞光解決（耐污性好點、可遮擋住刮破）、去混凝土工程土、石雕外面層污圬等解決。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆關鍵高技術指標 Main technical parameters

器機形號 Model	STR-B型無塵自動循環回收式噴砂機
操作24v電源 Work power	380V 50HZ
大氣重壓 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
馬達輸出功率 Motor power	4kw
作業能力 Work efficiency	6-10m2
任務表面積 Work radius	10m 可不同標準加厚，按照咨訊軟件客服
本職工作樣式 Work form	全自動反復的回籠Automatic cycle recovery
保養品級 Clean level	Sa2-3
干燥度 Roughness	60μm以內
重量體積 Weight	260kg
外觀規格尺寸 Shape dimension	1380×830×1700mm
砂料規模 Sand material specifications	20-100#上面的（1.0mm-0.04mm）

◆適于標準 Applicable scope

1.環保節能需要高且無一些除灰機的地方；

2.凈化處理等級劃分較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

運行范圍圖：去銹、除水性油漆焊接處理去棱刺、飛邊、脫色皮不繡鋼、鋁板外表面的典雅型亞光治理（耐污性適合、可掩蓋刮破）去混疑土、石雕表層污圬等治理。

（詳細材質可參照A型或致電我工司）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 商品亮點 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已壓解，目標這就是有利野外進行施工中移動有利，大圓圓的降了勞動改造抗壓強度，和進行處理生產率在內部同種型的產品比較方便；取到更多消費者的不一認可的，并就取到了廣的線上推廣和實用！（具體情況個人信息可選取A型或轉達我品牌）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

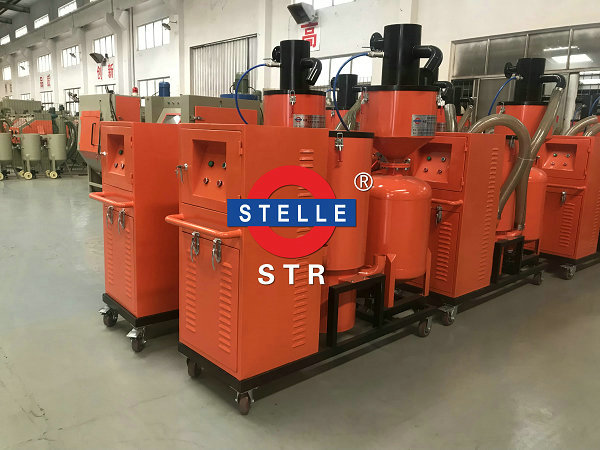

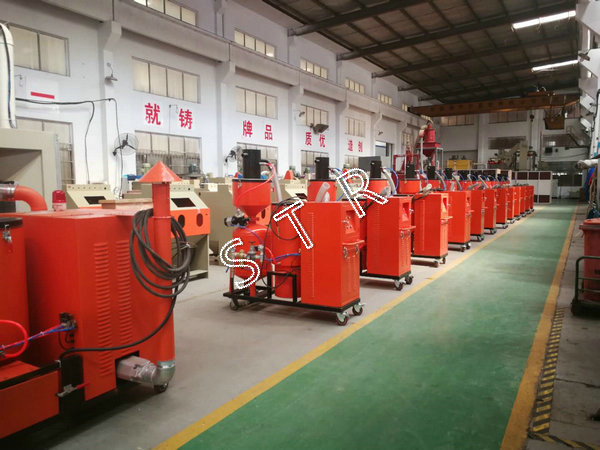

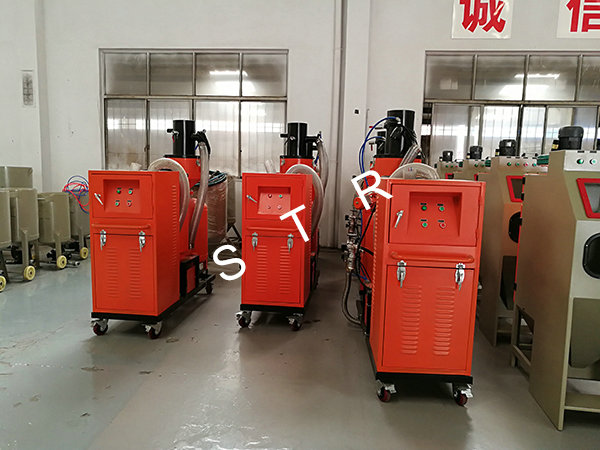

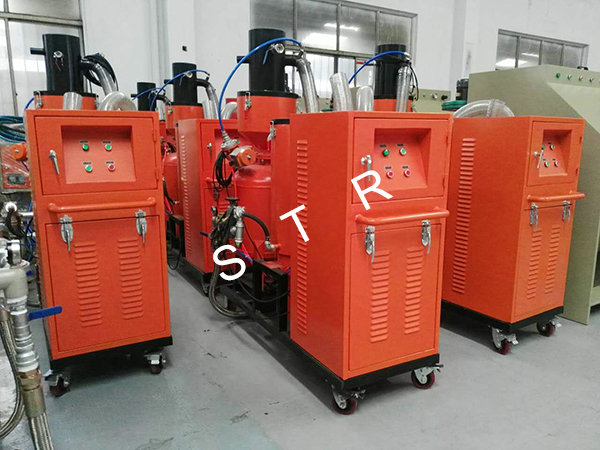

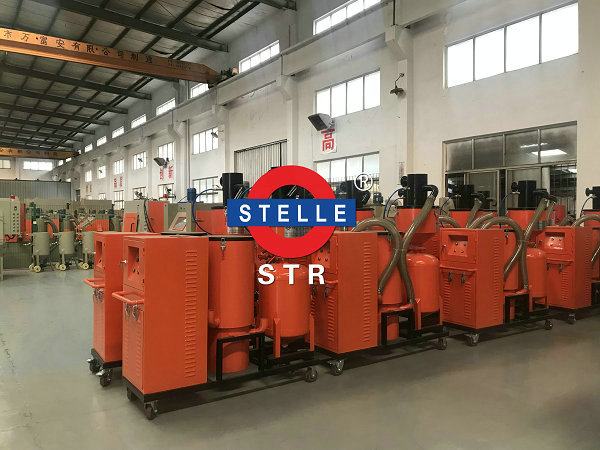

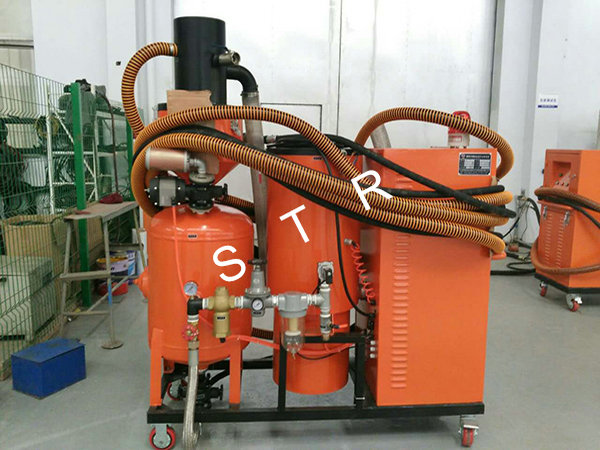

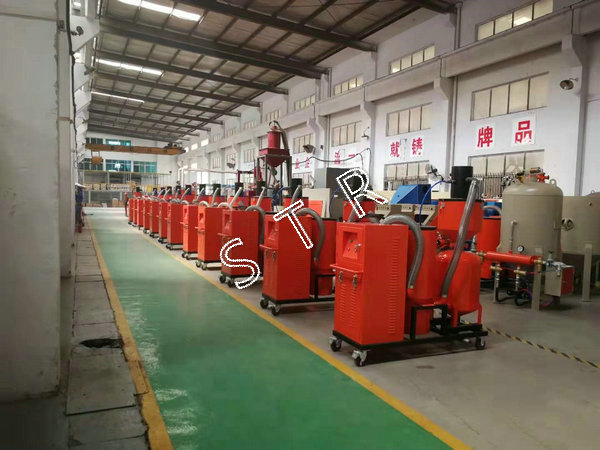

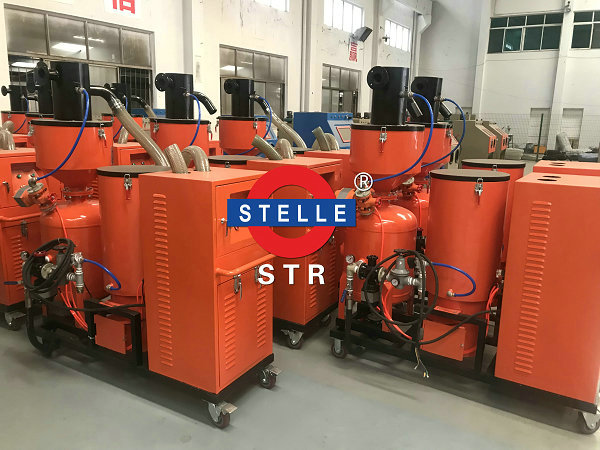

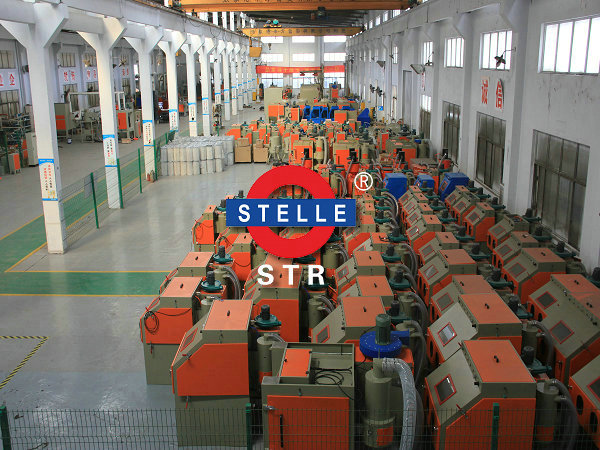

部份無塵自動循環環保型噴砂機案例:
