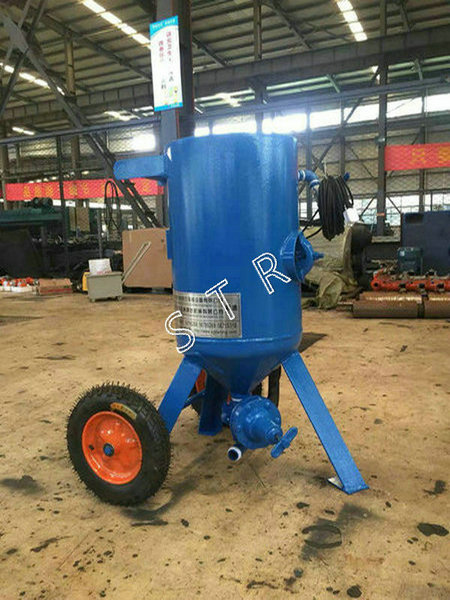

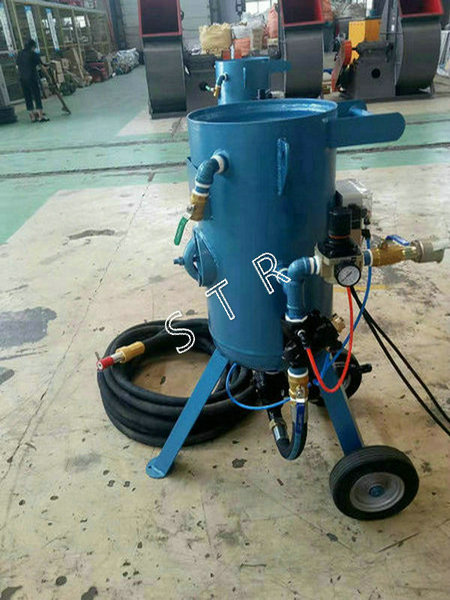

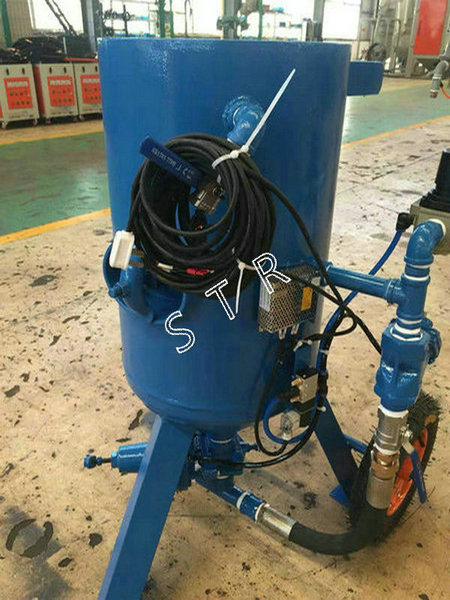

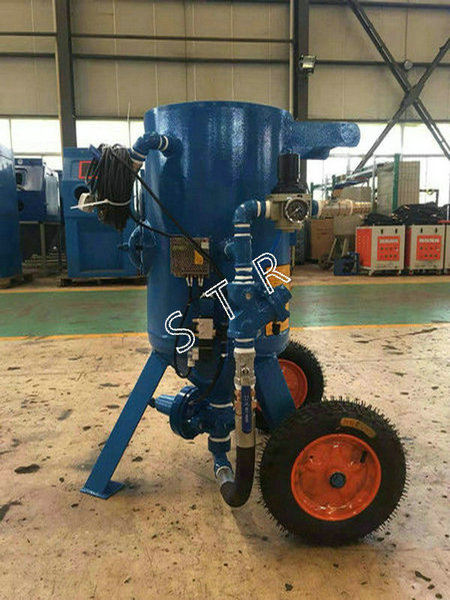

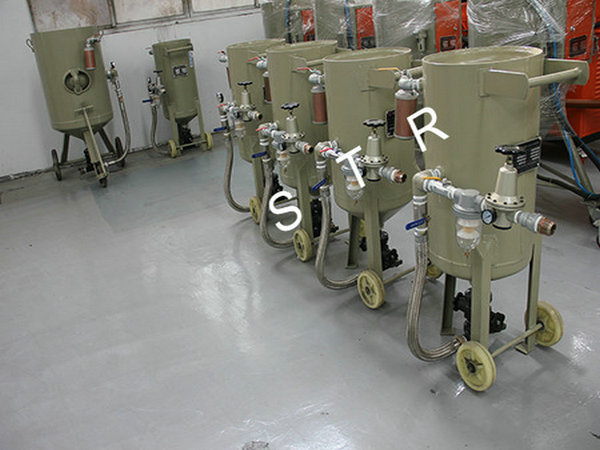

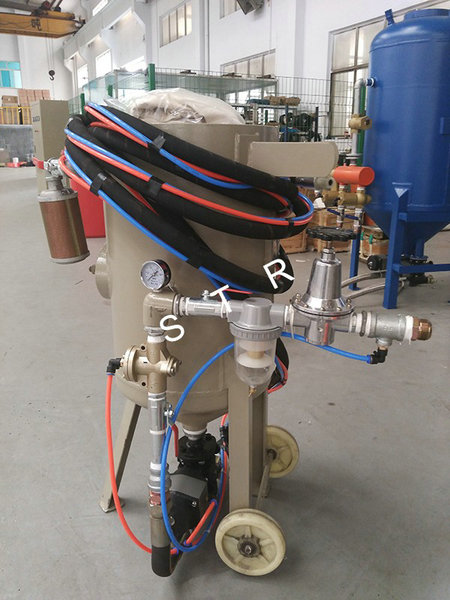

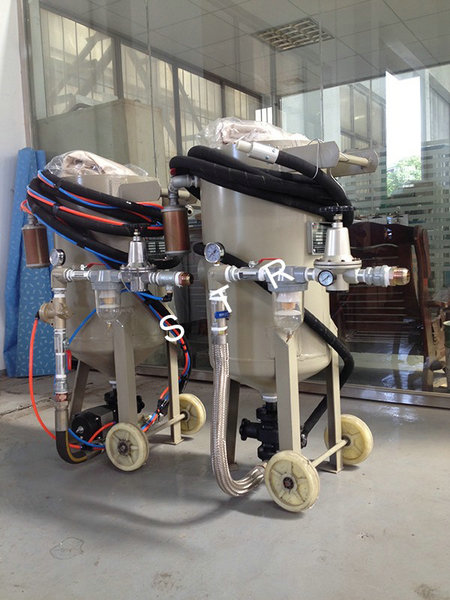

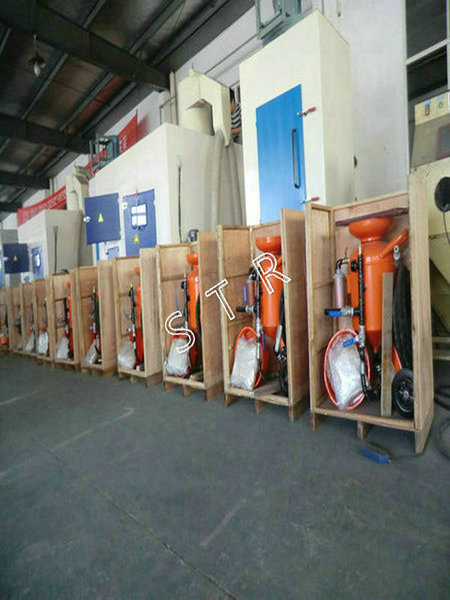

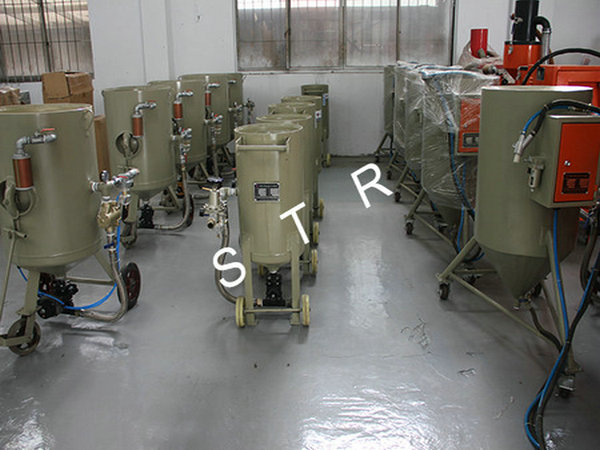

◆產品設備特質 Product features(請向上預覽多大量應用案例手機照片供基準)
1. 可挪動運營,系統全,設施齊,運營簡短便于。
2. 凡是掌握壓縮視頻氣體源,就能開始提高效應率的表皮進行清潔及光飾噴砂除理。
3. 可基于要選定 手控式或電氣控制噴砂操作流程策略。
1. Mobile operation, complete functions, perfect facilities, and convenient operation.
2. As long as have compressed air source, can perform high efficiency of the surface cleaning and light act the role ofing sandblasting processing.
3. Can choose hand control or the electric control gush arenaceous operating mode according to need.
◆適用人群空間 Applicable scope
采適用魔幻工件表面的噴砂處里(如鋼設備構造、船泊修造、不銹鋼、熱水鍋爐、集標準箱等)清潔運作,服飾產業牛仔服服突顯噴砂。
Application: apply to large workpieces piating (such as steel structure, ship building, steel plates, boiler, container, etc) clean up, jeans garment industry to modify sandblasting.
◆首要技術性技術指標 Main technical parameters
(該類型噴砂機有手動操作時控住 電動式控住 液壓控住 可控控住鑒別重要與業務員交流斷定)
機器人規格 Model |
STR-340 |
STR-430 |
STR-400 |
金剛石工具桶口徑 Abrasive drum diameter (mm) |
340 |
430 |
400 |
層面 Height(mm) |
1000 |
1100 |
1000 |
爐料桶水比熱容 Abrasive drum volume (m3) |
0.024 |
0.06 |
0.1 |
凈重 Weight (kg) |
60 |
80 |
90 |
運轉的壓力 Work pressure (bar) |
2-8kg,能自由調節節 |
2-8kg,可以調整節 |
2-8kg,可以調節節 |
噴槍次數 Spray gun quantity |
1 |
1 |
1 |
噴水嘴尺寸 Nozzle diameter (mm) |
¢8或10 |
¢8或10 |
¢8或10 |
噴砂管 Gush arenaceous tube |
5米 |
5米 |
5米 |
生產率 Efficiency(m2/h) |
10-15 |
10-15 |
10-15 |
